1. Product overview and application scope
   KYN28-12 metal-enclosed switchgear (hereinafter referred to as switchgear) is a new type of product designed and developed by the company on the basis of absorbing advanced manufacturing technology at home and abroad, which can replace a variety of old type metal-enclosed switchgear, such as KYN1-10, JYN2-10, GBC-10 and other products. Its products have the following obvious advantages:
   1.1 The shell of the product is completely assembled by bolts after multiple bending and forming of the aluminum-clad steel plate processed by CNC machine tool, which has high mechanical strength and effectively ensures the neat and beautiful appearance of the product. The cabinet door is sprayed with plastic coating, which has strong impact resistance and corrosion resistance. The product housing has IP4X level of protection.
   1.2 The main switch of this product can be configured with VY4, VD4 series vacuum circuit breaker, C3 series fixed load switch, and can also be configured with a variety of domestic series vacuum circuit breaker (such as VS1, VH1, VK, ZN28) to replace similar foreign products.
   1.3 No matter what type of circuit breaker is selected, the bare conductor air insulation distance must be greater than 125mm, and the composite insulation must be greater than 60mm. The circuit breakers have the unique advantages of long life, high parameters, less maintenance and small size.
   KYN28-12 armoury medium metal enclosed switchgear is suitable for 3.6-12KV three-phase AC 50Hz power grid to receive and distribute electrical energy, and to control, monitor and protect the circuit. Can be used in single bus, single bus segment system or double bus system. Switchgear conforms to IEC298 “Rated voltage above 1KV 52KV and below AC metal enclosed switchgear and control equipment”, IEC694 “High voltage switchgear and control equipment Regulations”, China GB3906 “3-35KV AC metal enclosed switchgear” and DL404 “Indoor AC high voltage switchgear ordering conditions”, German DIN.VDE670 “AC switchgear with rated voltage above 1KV” and other standards. And it has perfect and reliable anti-misoperation function.

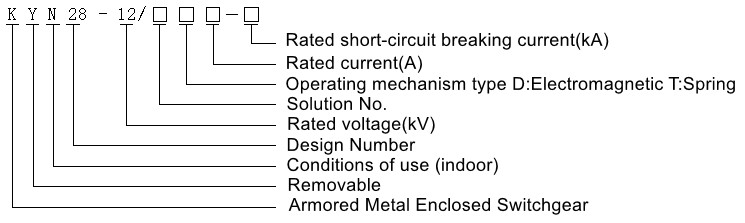

2. Model meaning

3. Normal operating conditions
   3.1 Ambient air temperature: upper limit +40℃, lower limit -10℃;
   3.2 Relative humidity: the daily average is not more than 95%; The monthly average is not more than 90%;
   3.3 Altitude: no more than 1000m;
   3.4 Earthquake intensity does not exceed 8 degrees;
   3.5 No fire, explosion danger, serious pollution, chemical corrosion and violent vibration occasions, when the use of conditions beyond the above scope, should be negotiated by the user and our company to determine the scope and technical measures.
4. Technical parameters
   4.1 Technical Specifications of the switchgear

entry		Single position	parameter
Rated voltage		kV	3.6、7.2、12
Rated frequency		Hz	50
Circuit breaker rated current		A	630、1250、1600、2000、2500、3150
Rated current of switchgear		A	630、1250、1600、2000、2500、3150
Rated dynamic stability current (4s)		kA	16、20、25、31.5、40、50
Rated dynamic stable current (peak)		kA	40、50、63、8、100、125
Rated short-circuit breaking current		kA	16、20、25、31.5、40、50
Rated short-circuit switch closing current (peak)		kA	40、50、63、80、100、125
Rated insulation level	1m?in power frequency withstand voltage	kV	24	32	42
	Lightning impulse, withstand voltage	kV	40	60	75
Class of protection		The enclosure is IP4X, and the compartment and circuit breaker room doors are IP2X when opened

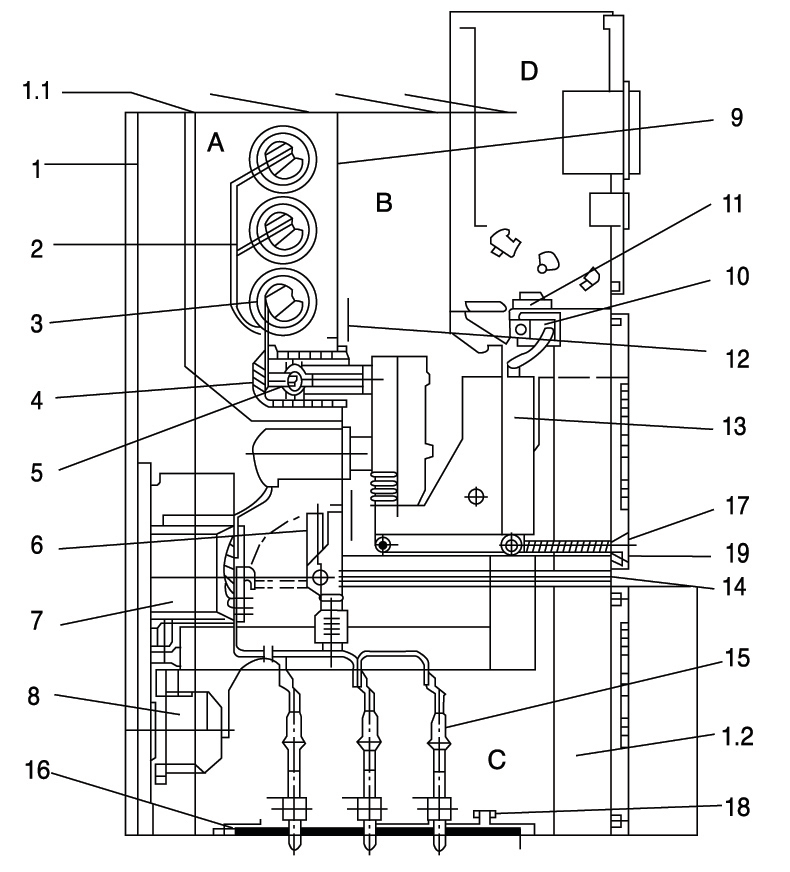

KYN28-12 switch cabinet basic structure diagram

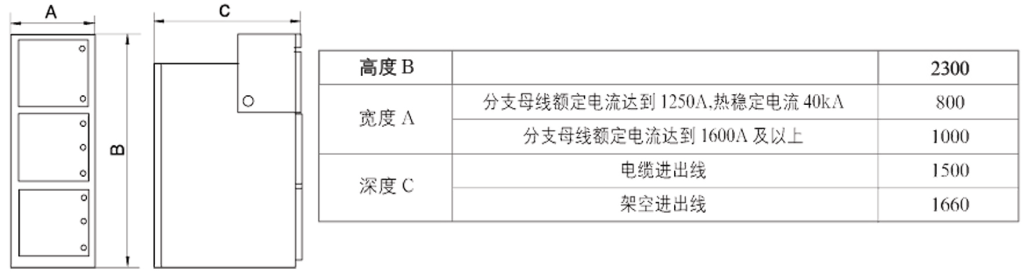

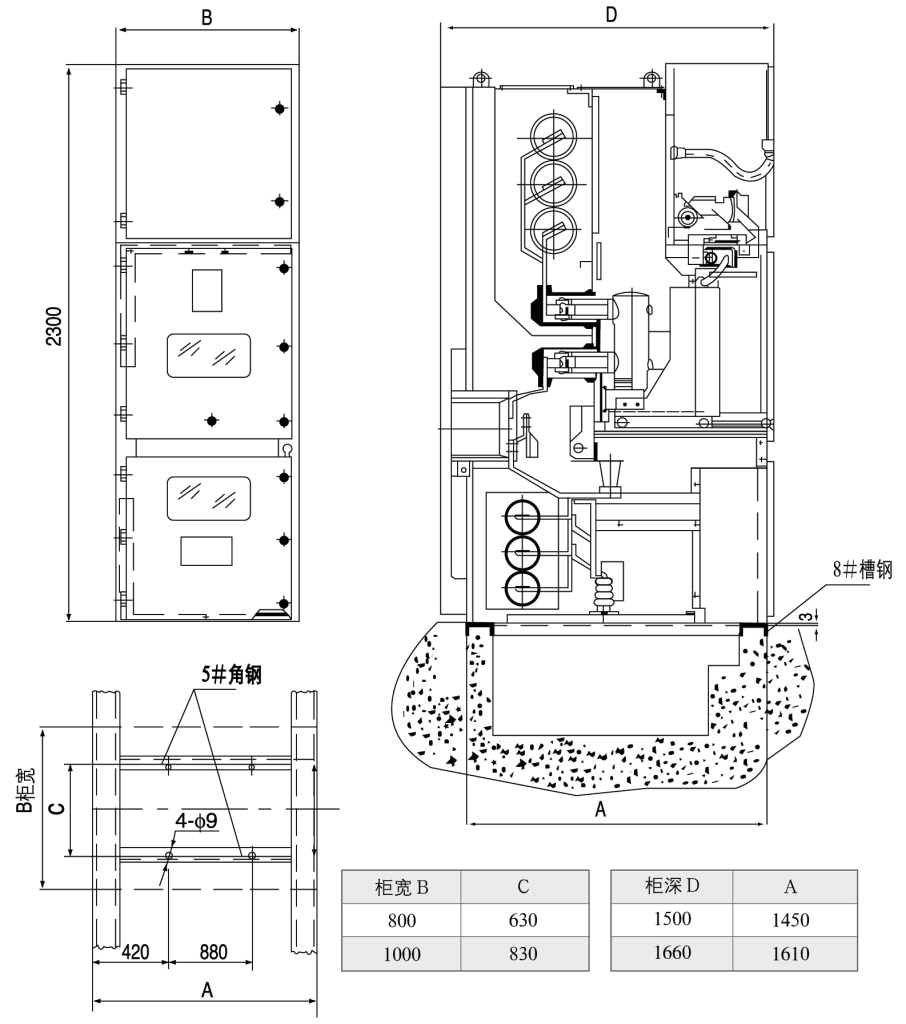

Figure 1 Dimensions of the switchgear

Figure 2 Basic form
